CAN to RS232 Converter

The CAN <--> RS232 Converter allows you to connect a CAN network with a RS232 network

Specifications

  • Automotive grade micro controller intended for CAN communications
    CAN Channel with Bit Rates up to 1 Mbit/s
  • Compliant to CAN 2.0A (11bit ID’s) and CAN 2.0B (29bit IDs)
  • Data transfer between CAN and RS232 with a maximum Baud Rate of 115,200
  • Both CAN and RS232 Baud Rates are configurable from the GUI
  • LED for UART and CAN Configure & Running mode status Indication
  • Power Supply Voltage range from 9 to 36 V
  • Operating temperature range from -40 to 85 °C
  • Configurable using free PC based GUI software

Product Demo video link:-

Videos

KIT Contents

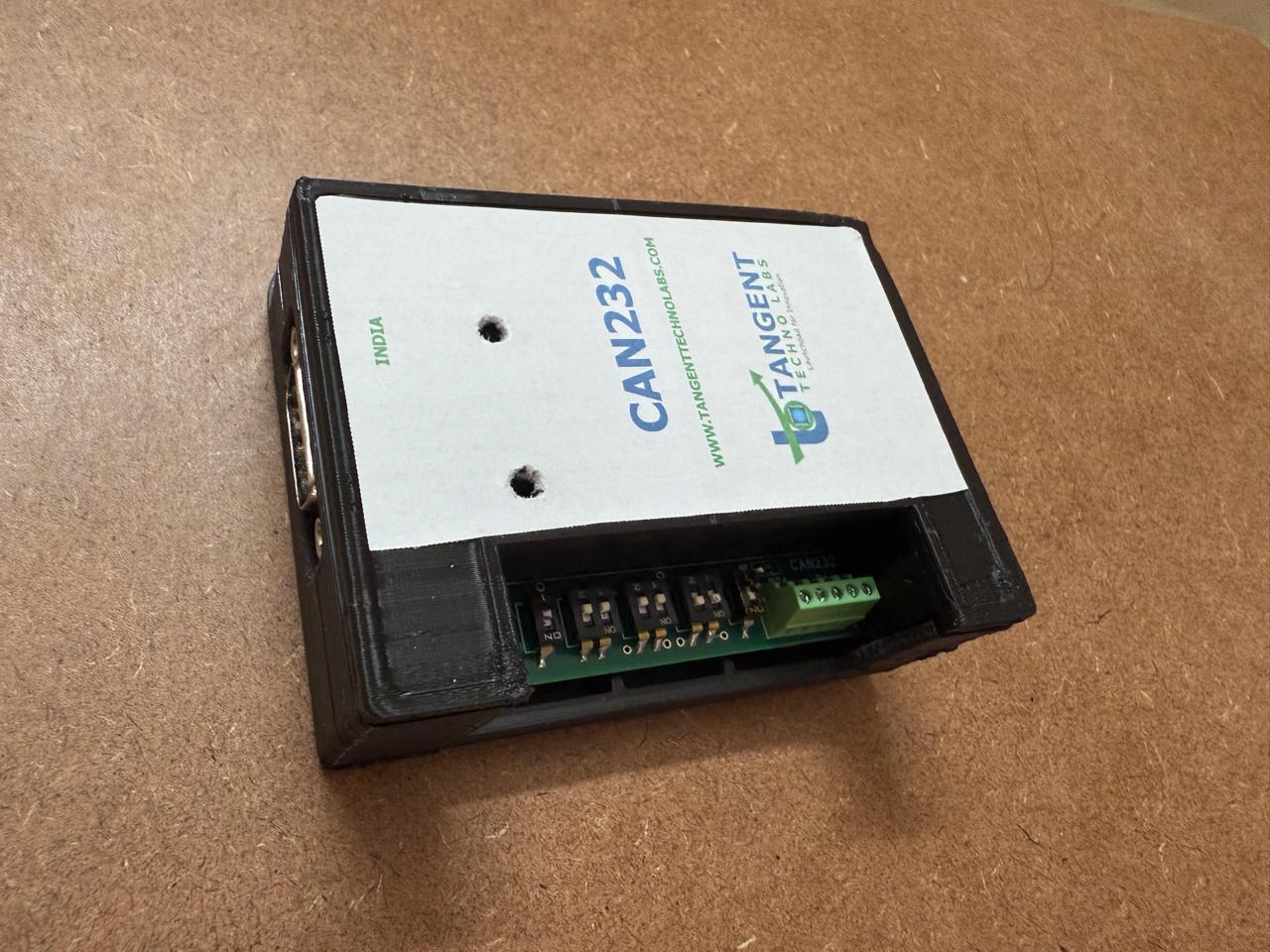

  1. vCAN-RS232 Hardware in a Plastic Enclosure
    Terminal End Connector – 1 Nos
  2. vCAN-RS232 config GUI for windows
  3. User Manual in PDF Format
    Note: All the software utilities are Windows® based
